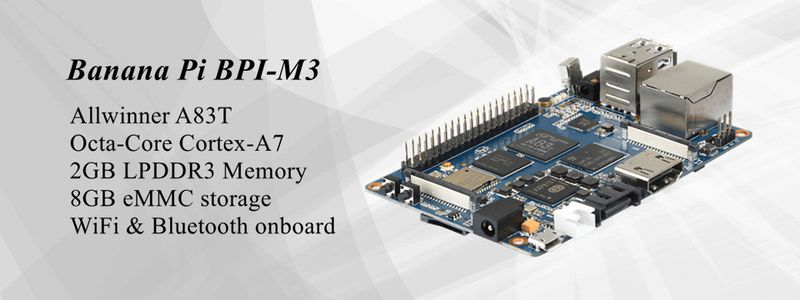

Banana Pi BPI-M3 with Allwinner A83T Octa-core chip design with 2G RAM and 8G eMMC

  • Allwinner A83T Octa-core 1.8GHz Powerful CPU
  • 2 GB LPDDR3 memory
  • 8 GB eMMC storage
  • Sata hardisk interface
  • HDMI out
  • IR control
  • WiFi & BT onboard
  • MIPI DSI interface
  • CSI camera interface

    Banana Pi M3 is a super charged single board computer with an Octa-core processor and 2GB of RAM. Along side the elite processing unit, it features Gigabit Ethernet, 2 USB, SATA, WiFi&BT, and HDMI connection. It can run on a variety of operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.

    Banana Pi M3 Overview And Android Benchmark Test 8 Core Single Board Computer:

    Being a brother of the power hungry M2, the M3 does not want to rest while his brother goes to acquire two more cores. The M3 secretly mastered the powerful art of Octa-core to best even the M2. Unlike his careless brother, the M3 did not lose his SATA port.

    Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

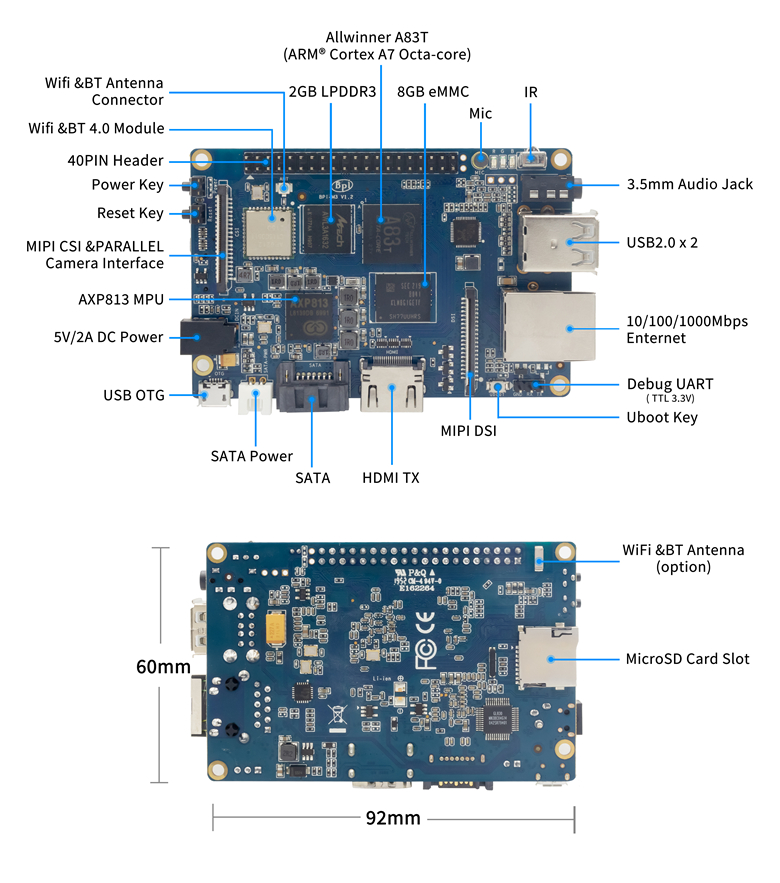

    Hardware interface:

    Hardware spec:

    Banana Pi BPI-M3
    CPU Allwinner A83T ARM Cortex-A7 Octa-Core 1.8 GHz, 512KB L1 cache and 1MB L2 cache
    GPU PowerVR SGX544MP1 Comply with OpenGL ES 2.0 OpenCL 1x, DX9_3
    Memory 2 GB LPDDR3 (shared with GPU)
    Storage On Board 8GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port (USB-to-SATA bridge)
    Network 10/100/1000 Mbit/s Ethernet (Realtek RTL8211E/D) + Wi-Fi 802.11 b/g/n (AP6212) + BT4.0
    Video Input(s) A CSI input connector allows for the connection of a designed camera module
    Video Output(s) HDMI 1.4 (Type A Full), MIPI Display Serial Interface (DSI) for raw LCD Panel
    Audio Input(s) On board microphone
    Audio Output(s) 3.5mm jack and HDMI
    USB ports USB 2.0 PORT (x2), USB OTG (x1)
    Remote IR Receiver (x1)
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
    Switches Reset, Power and U-boot
    LED Power Status and 8P8C
    Power Source 5 volt @2A via DC Power and/or Micro USB (OTG)
    Size & Weight 92x60mm, 48g
    OS Android and Linux

    Online development documents:

    Banana Pi $70 Allwinner A83T Development Board BPI-M3:
