SBC

Banana Pi BPI-F3 with SpacemiT K1 8 core RISC-V chip,2/4/8/16G RAM and 2/4/8/16G eMMC

8 core RISC-V chip
CPU integrates 2.0 TOPs AI computing power
Single-core general computing power equivalent to 1.3 times Cortex-A55
Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory
4K decoding and encoding
5-lane PCIE2.1 expansion capability
1x USB 3.0 + 2x USB 2.0 interfaces
12x UART serial ports
Operating temperature range: -40°C to 85°C

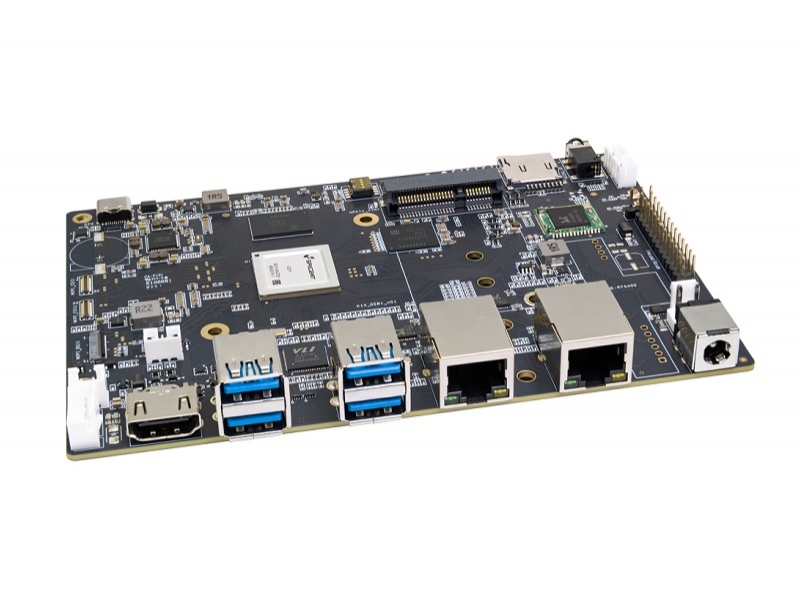

    Banana Pi BPI-F3 is a industrial grade RISC-V development board, it design with SpacemiT K1 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 2/4/8/16G DDR and 8/16/32/128G eMMC onboard.2x GbE Ethernet prot, 4x USB 3.0 and PCIe for M.2 interface, supprt HDMI and Dual MIPI-CSI Camera.



    Key Features:

    * 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power
    * Single-core general computing power equivalent to 1.3 times Cortex-A55
    * Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory
    * 4K decoding and encoding
    * 5-lane PCIE2.1 expansion capability
    * 1x USB 3.0 + 2x USB 2.0 interfaces
    * 12x UART serial ports
    * Operating temperature range: -40°C to 85°C

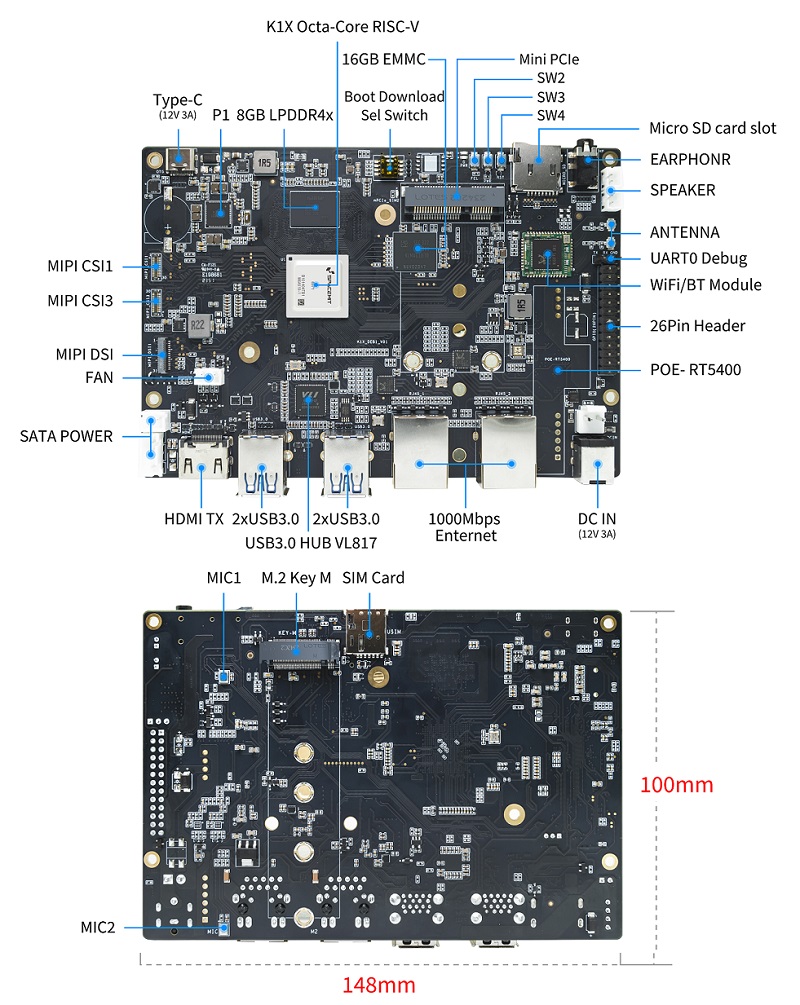

    Hardware interface:


    Hardware spec:

    HardWare Specification of Banana Pi BPI-F3 RISC-V SBC

    CPU

    SpacemiT K1 8 core RISC-V chip

    AI

    2.0Tops from RlSC-V Core

    Memory

    4 GB LPDDR4 (Supports up to 8G LPDDR4)

    Storage

    16G eMMC flash,4M SPI NOR,32M SPI NAD

    SD card

    MicroSD card slot (Greater than 256MB)

    Wireless

    2.4G/5G WiFi and Bluetooth 4.2

    Ethernet

    2x GbE Ethernet port(supports PoE with add-on PoE HAT)

    HDMI

    1x full-size HDMI digital Audio output(HDMI1.4,up to 1080p@60fps )

    Audio

    Speaker,Mic, Earphone

    Camera

    MIPI-CSI, Dual-shot support

    USB

    4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG

    PCIe

    PCIE2.1 2lane * 2.
    PCIEB 2lane connect M.2 KEY M( Support JMB582 expansion card to SATA )
    PCIEC 1lane connect MINI PCIE

    GPIO

    26-pin header

    Buttons

    Reset, Power and Burn

    IR

    IR-Rx

    LED

    Power Status

    Power

    DC in and TYPE-C in

    Size

    148x100 mm

    Weight

    200g


    Online wiki development documents: https://docs.banana-pi.org/en/BPI-F3/BananaPi_BPI-F3
