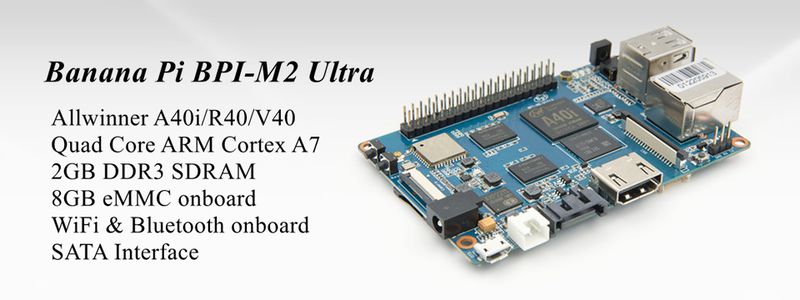

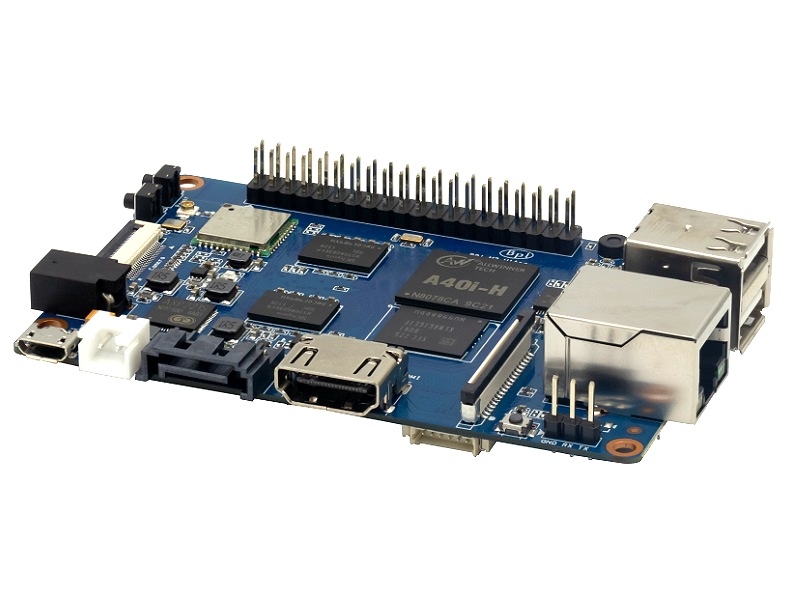

Banana Pi BPI-M2 Ultra with Allwinner A40i/R40/V40 chip design,2G RAM and 8G eMMC

  • Allwinner A40i/R40/V40 Quad Core ARM Cortex A7 CPU
  • 8GB eMMC flahs onboard
  • WiFi & BT onboard
  • SATA Interface
  • 2*USB 2.0
  • MIPI DSI ingerface
  • CSI camera interface

    Banana Pi BPI-M2 Ultra is a quad-core mini single board computer built with Allwinner A40i(option R40/V40) SoC. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, a DC power port, and last but not least, a SATA port..
    Also being a member of the Banana Pi family, the M2 Ultra is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the A40i is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

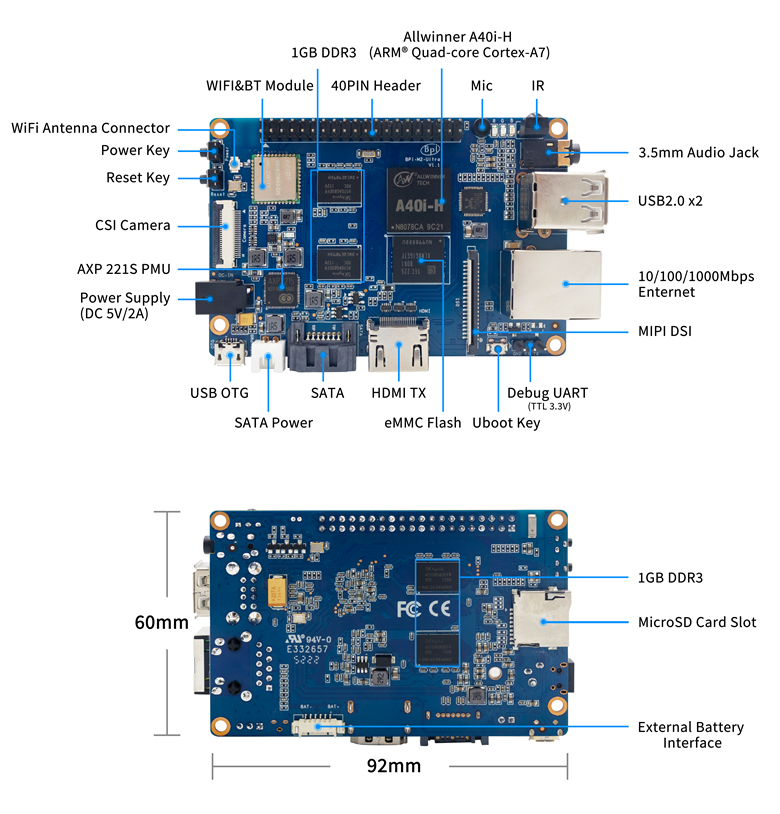

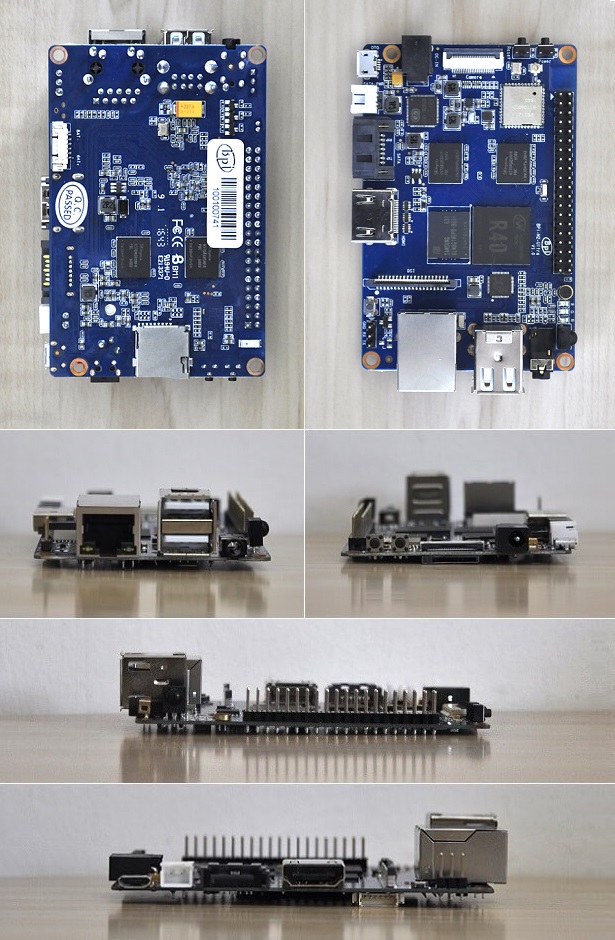

    Hardware interface:

    Hardware spec:
    HardWare Specification of Banana pi BPI-M2 Ultra
    Soc Allwinner A40I/R40/V40
    CPU quad-core cortex -A7,the most power efficient CPU core ARM‘s ever development
    GPU dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode.
    SDRAM 2 GB DDR3 with 733MHz(shared with GPU)
    SATA suppoort SATA interface
    GPIO 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
    On board Network 10/100/1000Mbps Ethernet (Realtek RTL8211E/D)
    Wifi Module WiFi 802.11 b/g/n (AP 6212 module on board)
    Bluetooth BT4.0
    On board Storage MicroSD (TF) card,8GB eMMC onboard
    Display 4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4
    Video Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition(HD)H.264 video encoder is up to 1080P@45fps
    Audio outputs HDMI, analog audio (via 3.5 mm TRRS jack)
    Camera A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps
    Audio input On board microphone
    USB 2 USB 2.0 host, 1 USB 2.0 OTG
    Buttons Reset button, Power button, U-boot button
    Leds Power status Led and RJ45 Led
    IR onboard IR receiver
    DC Power 5V/2A with micro USB port
    battery 3.7V lithium battery power support
    Sizes 85mmX56mm,same size as raspberry pi 3
    Weight 40g

    Online wike development documents:
