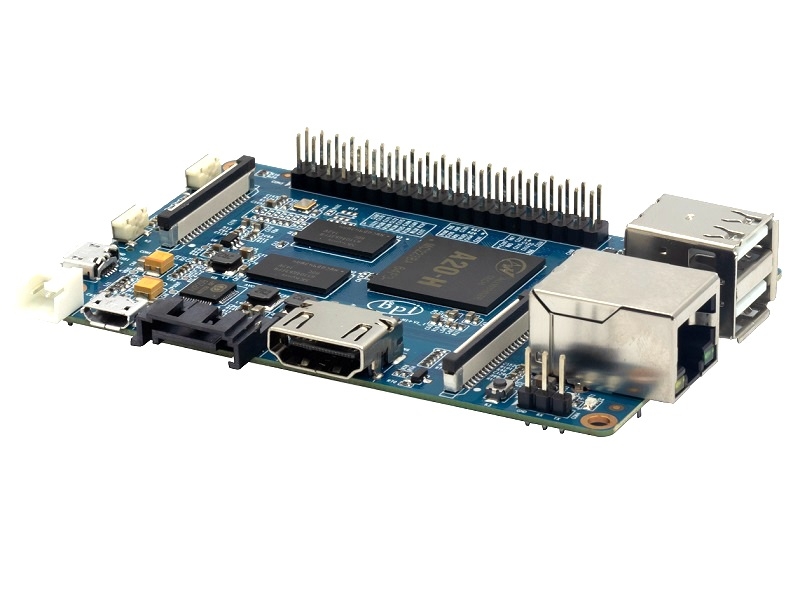

Banana Pi BPI-M1+ with Allwinner A20 chip design with 1G RAM

  • Allwinner A20 Dual-core 1.0GHz CPU
  • Mali-400 MP2 with Open GL ES 2.0/1.1
  • 1 GB DDR3 memory
  • Wifi support onboard
  • 1x SATA interface
  • 1x Gigabit LAN
  • 1x USB otg and 2x USB 2.0
  • 1X MIC
  • AV out
  • HDMI out
  • IR
  • CSI camera interface
  • DSI display interface
  • 40 PIN gpio
  • 3.7V lithium battery interface

    Banana Pi BPI-M1+ upgrade is an open-source single-board computer that adds more connectivity to the classic board. It features the same high performance AllWinner A20 dual-core SoC at 1GHz, 1GB of DDR3 SDRAM, Gigabit Ethernet, SATA, USB, and HDMI connections found in classic BPI-M1+ ; but the Banana Pi M1+ features onboard WiFi g/b/n. The board supports all classic projects and even more because of the onboard WIFi chip. Like its sibling, it can run operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.

    Banana Pi M1+ unboxing and hardware walkaround

    The Banana Pi M1+ is our upgraded M1 board. We feel like the onboard WiFi adds a lot more features to the board and makes it more convient for users to set up their linx desktop or router projects. Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. With a Banana Pi, we want you to explore and experience the world of DIY projects and portable computing. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

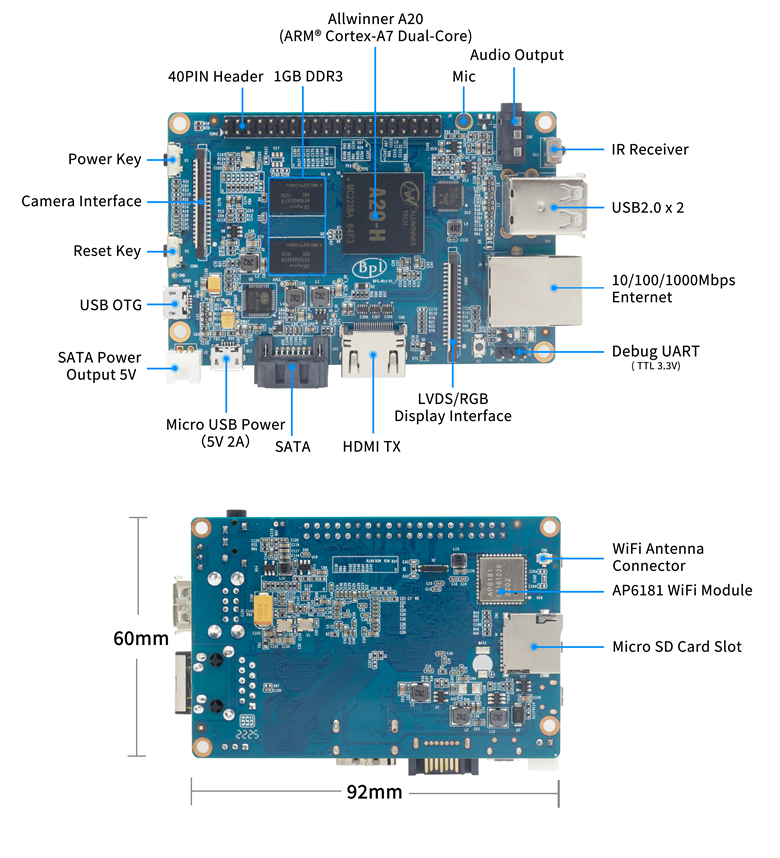

    Hardware interface:

    Hardware spec:

    Banana Pi BPI-M1+
    CPU A20 ARM Cortex -A7 Dual-Core
    GPU ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
    Memory 1GB DDR3
    Network 10/100/1000 Ethernet
    wifi&BT Wifi support onboard
    Video Input A CSI input connector allows for the connection of a designed camera module
    Video Outputs HDMI, CVBS, LVDS/RGB
    Audio Outputs 3.5mm jack and HDMI
    Power Source 5V/2A via Micro USB (DC in only) and / or Micro USB OTG
    USB 2.0 ports 2(direct from Allwinner A20 chip)
    LED Power Key & 8P8C
    Storage SATA 2.0
    OS Android 4.4, Android 4.2, Raspbian, Lubuntu, Open Suse, Debian

    Online Wiki development:

    Github Source Code :
