Smart Router

Banana Pi BPI-R2 Pro Router board with Rockchip RK3568 chip design

  • Rockchip RK3568 Quad-core ARM Cortex-A55 CPU
  • Mali-G52 1-Core-2EE
  • 2G LPDDR4 SDRAM (option 4G)
  • Mini PCIE interface and M.2 key-e interface
  • support 1 SATA interface
  • MicroSD slot supports up to 256GB expansion
  • 16G eMMC flash (option 16/32/64G)
  • 2 MIPI display interface support
  • 1 CSI camera interface
  • 5 port 10/100/1000 Mb Ethernet port
  • (2) USB 3.0 and (1) USB 2.0 otg port

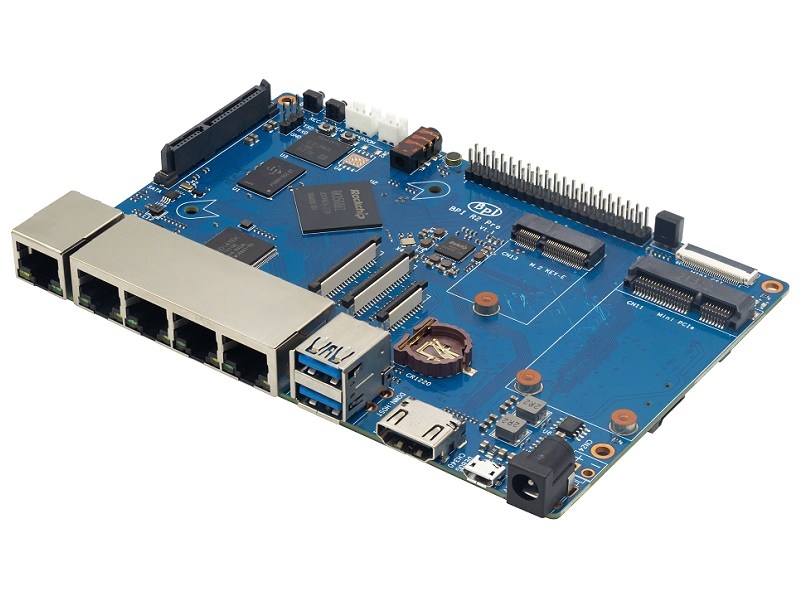

    Banana Pi BPI-R2 Pro is the next generation smart router developement board from Banana Pi in 2021. It is powered by Rockchip RK 3568 processor.Onboard 2GB LPDDR4 memory and 16GB eMMC storage, and supports 2 USB 3.0 interface, 5 gigabit network port. M.2 key-E and mini PCIe interface, 2 mipi DSI interface(one can change to LVDS by software), 1 CSI camera interface,1 HDMI output,support Android,Linux,OpenWRT system

    BPI-R2 Pro same size as Banana Pi BPI-R2 , and interface is also same .so can use BPI-R2 case.

    Hardware interface:

    Hardware spec:
    Banana Pi R2 Pro
    CPU Rockchip RK3568 Quad-core ARM Cortex-A55 CPU 2GHz
    GPU Mali-G52 1-Core-2EE OpenGL ES3.2 Vu1kn 1.1 OpenCL 2.0
    Memory 2G DDR3 SDRAM (option 4G)
    Storage Onboard 16GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port,SPI flash
    Network 5 x 10/100/1000 Mbit/s Ethernet
    Display(s) 1 HDMI port, 2 DSI interface(1 DSI can change to LVDS by software)
    Camera 1 CSI camera interfact
    Video decoder(s) H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096x2304@60fps,H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps
    Video encoder(s) H.264/AVC BP/MP/HP@level4.2,up to 1920x1080@100fps, H.265/HEVC MP@level4.1, up to 1920x1080@100fps (4096x4096@10fps with TILE)
    Audio Output(s) HDMI & I2S & Speaker & Headphone
    USB port USB 3.0 PORT (x2), micro USB OTG (x1)
    mini PCIE 1 mini pcie interface & 1 M.2 key-e interface
    Remote IR Receiver (x1)
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
    Switches Reset button, Power button, U-boot button
    LED Power Status and 8P8C
    Power Source 12 volt @2A via DC Power and/or Micro USB (OTG)
    Size & Weight 148 mm × 100.5mm 100g
    OS OpenWRT, Linux and others OS
    Banana Pi BPI-R2 PRO Unboxing & Overview (OpenWRT/Android/Linux):

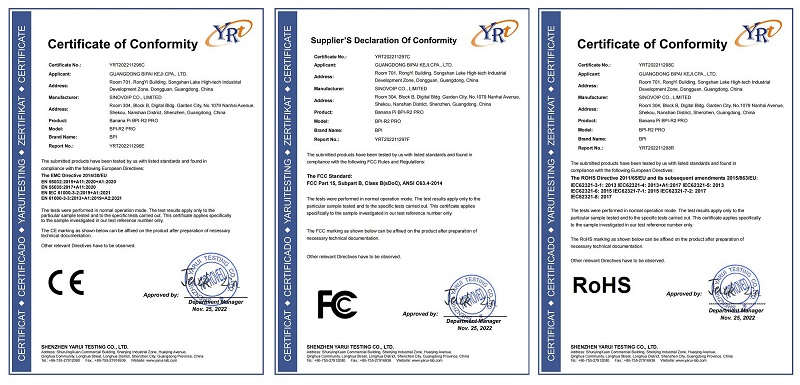

    Banana Pi BPI-R2 Pro CE,FCC,RoHS:

    Online wiki development documents:
