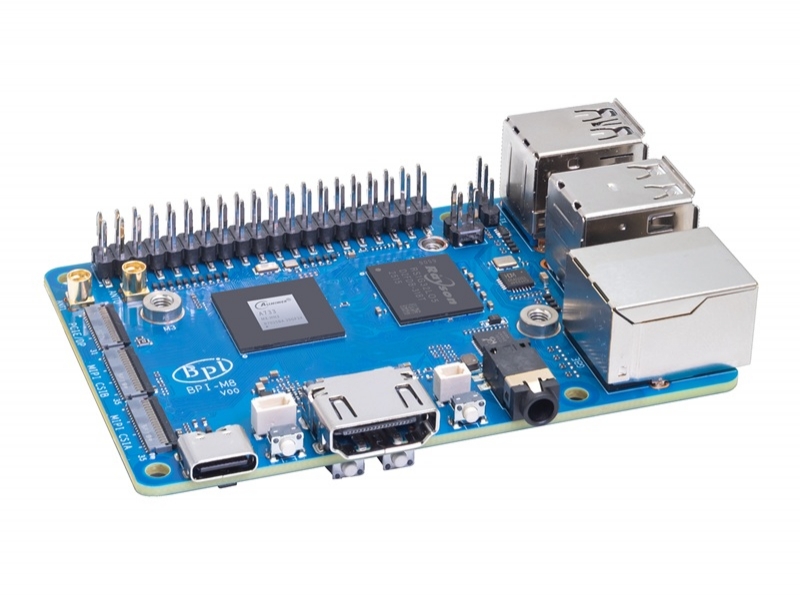

Banana Pi BPI-M8 SBC with Allwinner A733 chip design

Dual-Core Arm Cortex-A76 + Hexa-Core Arm Cortex-A55, up to 2.0GHz
Imagination PowerVR BXM-4-64 MC1
4GB LPDDR5 RAM
32GB eMMC flash
Support MIPI DSI Display interface
Support MIPI CSI Camera interface
Support PCIE/DP interface
Supports UFS modules
HDMI output
40 PIN GPIO
POE
PDF
    Banana Pi BPI-M8 is built on the high-performance octa-core AI platform chip A733, which combines a dual-core Arm® Cortex®-A76 and a hexa-core Arm Cortex-A55. It supports an Imagination PowerVR BXM-4-64 MC1 GPU, a 3TOPS NPU, and LPDDR4, LPDDR4x, LPDDR5 DRAM and UFS/eMMC memory.
    The BPI-M8 boasts a rich array of peripherals, including USB, DP, UFS, HDMI, MIPI CSI, MIPI DSI, FAN, RTC, and one Gigabit Ethernet port (supporting PoE). It also supports SD card booting and features an onboard KEIIOT K038 WiFi/Bluetooth chip. It is equipped with 4GB of LPDDR5 RAM, 32GB of eMMC storage, and two 12x12mm single-antenna modules.

    Key Features:

    • Dual-Core Arm Cortex-A76 + Hexa-Core Arm Cortex-A55, up to 2.0GHz

    • Imagination PowerVR BXM-4-64 MC1

    • 4GB LPDDR5 RAM

    • 32GB eMMC flash

    • Support MIPI DSI Display interface

    • Support MIPI CSI Camera interface

    • Support PCIE/DP interface

    • Supports UFS modules

    • HDMI output

    • 40 PIN GPIO

    • POE

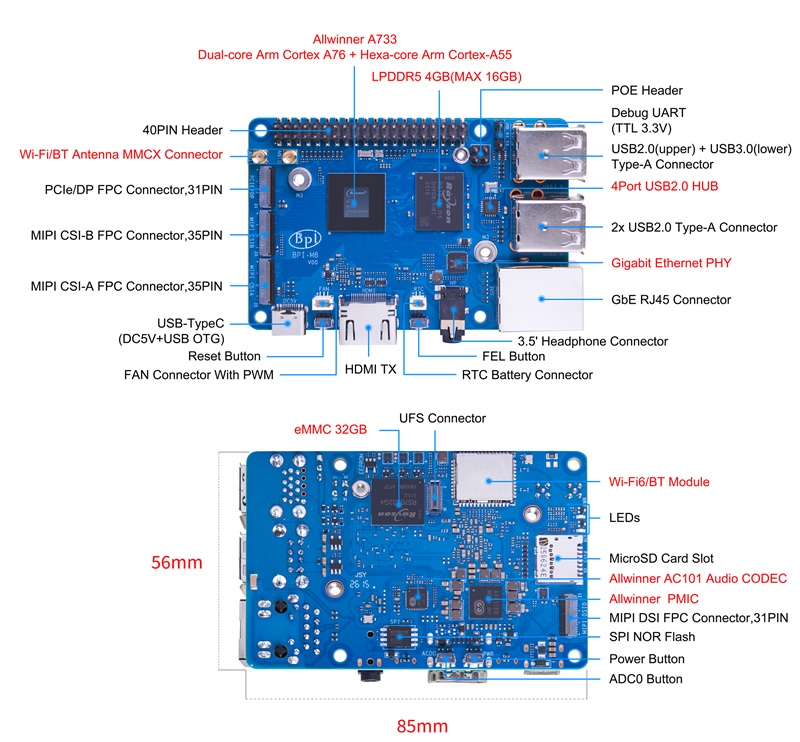

    Hardware interface:

    Hardware Spec:

    CPU

    Allwinner A733 Dual-Core Arm Cortex-A76 + Hexa-Core Arm Cortex-A55, up to 2.0GHz

    GPU

    Imagination PowerVR BXM-4-64 MC1

    Memory

    4GB of LPDDR5 RAM

    Storage

    MicroSD slot,32GB of eMMC storage(Supports UFS modules)

    Network

    10/100/1000M Ethernet + K038 WiFi/Bluetooth chip

    Video Output(s)

    HDMI port output

    Audio Output(s)

    3.5mm headphone jack output and HDMI sound out

    PCIE

    FPC PCIe socket (reused with DP socket)

    USB ports

    4x USB port

    GPIO

    40 Pin GPIO

    Switches

    PWR button and ADC button

    LED

    Power Status and Activity status

    Power Source

    5 volt @4A via Micro USB (TYPE C) or PoE support

    Size & Weight

    85x56 mm

    OS

    Linux,Android,Armbian

    More please see Online Wiki documents: https://docs.banana-pi.org/en/BPI-M8/BananaPi_BPI-M8
