Banana Pi BPI-CM6 RISC-V Computer Module public sale
Time:2025-11-25
Views:7

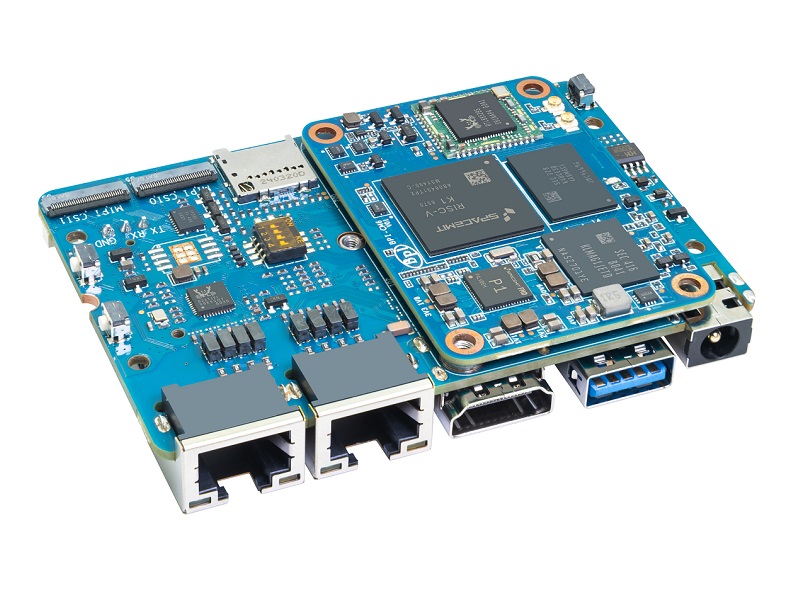

The Banana Pi BPI-CM6 computer module is a high-performance industrial-grade RISC-V AI computer module following the BPI-F3 single-board computer, officially cooperating with SpacemiT. It is designed with an 8-core RISC-V SpacemiT K1 chip, featuring a CPU with 2.0 TOPs AI computing power. It comes with 8/16G DDR and 8/16/32/128G eMMC. A board-to-board connector is designed to enhance stability. It is the same size as the Raspberry Pi CM4 and is compatible with the Raspberry Pi CM4 baseboard. It is mainly applied in education, embedded network storage, cloud computing, intelligent robots, industrial control, edge computing, etc. Users can freely design the baseboard to quickly develop various products.
Key Features
-
SpacemiT K1(Octa-core 64-bit RISC-V AI CPU,integrates 2.0 TOPs AI computing power)
-
8GB LPDDR4(SOC Support up to 16GB)
-
16GB eMMC
-
1x SDIO WiFi/BT Module
-
1x Integrates RTL8211F PHY
-
5-lane PCIE2.1 expansion capability interfaces
-
1x USB 3.0 + 2x USB 2.0 interfaces
-
1x HDMI 1.4 interface
-
1x MIPI DSI interface
-
3x MIPI CSI interfaces
-
1x RGMII interface
-
10x UART serial interfaces
-
Dimension: 40x55MM
-
Operating temperature range: -40°C to 85°C
Easy to buy sample and online wiki documents：https://docs.banana-pi.org/en/BPI-CM6/BananaPi_BPI-CM6
